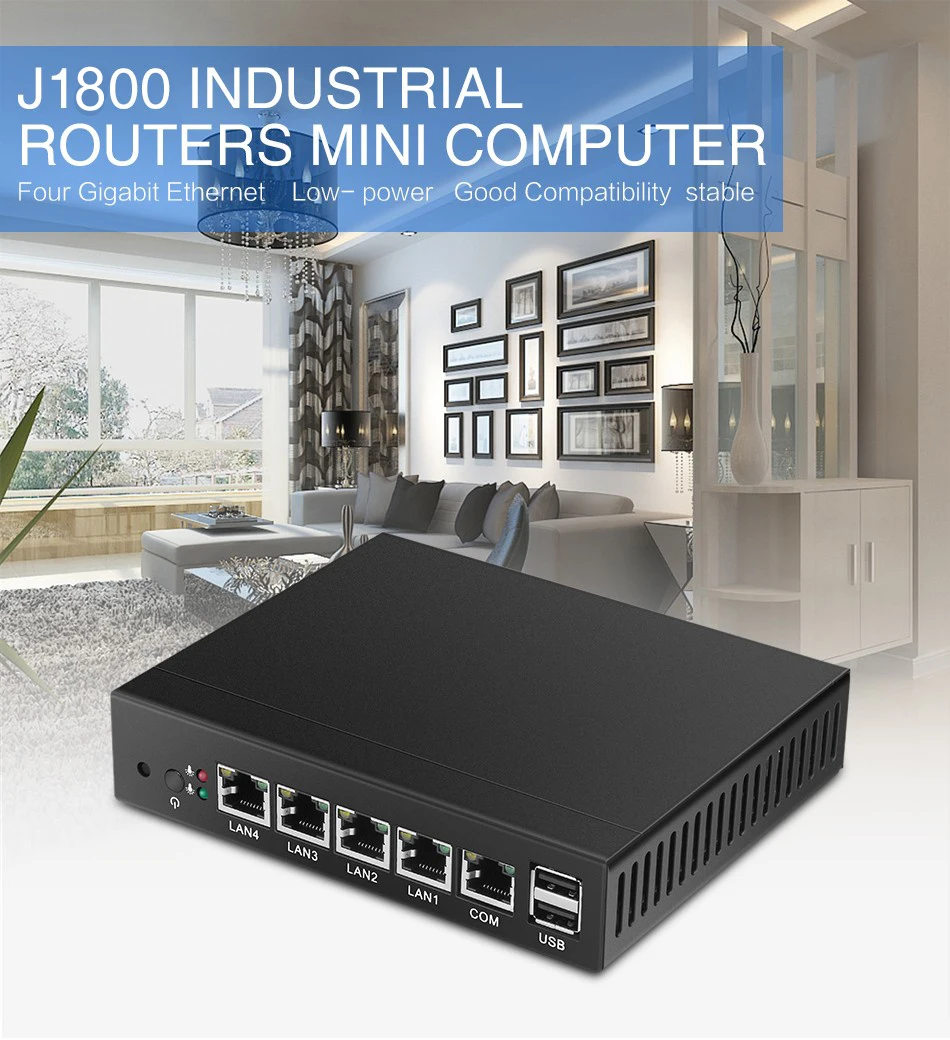

Fanless Mini PC Quad Core Intel Celeron J1900 Celeron J1800 4 LAN Gigabit ethernet Router Firewall Mini Computer Desktop Windows 10/8/7 HD Graphics VGA 4-RJ45 4-Network
Product Description: | |
(J1800)CPU | Intel Celeron Processor J1800 (1M Cache, 2 core 2 threads, 2.41 GHz up to 2.58 GHz) |
(J1900)CPU | Intel Celeron Processor J1900 (2M Cache, 4 core 4 threads, 2.00 GHz up to 2.42 GHz) |
Memory Type | 1333MHz, DDR3L, 1.35V, SO-DIMM Memory, DO NOT support DDR3 1.5V RAM. |
Ethernet port | 4x Intel 82583V/ i211-AT Gigabit Ethernet Controller |
Storage | Support 1 x mSATA port ,but can NOT support 2.5 inch SATA SSD / HDD |
Operating System | Support Windows 10/8 /7 ,Linux ,pfSense etc. |
Dimension | 150×123×33mm |
Configurations: | |
Memory Capacity | 2GB / 4GB / 8GB DDR3L SO-DIMM |
Hard Disk Capacity | 16GB/30GB/60GB/120GB/240GB mSATA SSD |
About Storage | The actual available storage is not equal to the written number,the reason we can explain is that :The software configuration of computer will occupy part of storage. |
Wireless wifi | Can NOT support wifi |
In/0ut Port : | |
Display port | 1 * VGA + 1 * rj45 COM |
USB port | 2 * USB |
SATA port | 1 * MSATA3.0, 6Gb/s |
MINI PCIE | 1 * MSATA SSD |
Ethernet port | 4x Intel 82583V Gigabit Ethernet Controller |
Power input port | 1 inner diameter 2.5mm,external diameter 5.5mm |
Power and Working Environment : | |
Input | DC 100-240V AC/50-60Hz |
Output | DC 12V/5A |
Consumption | 10W |
Humidity | 10%-90% |
